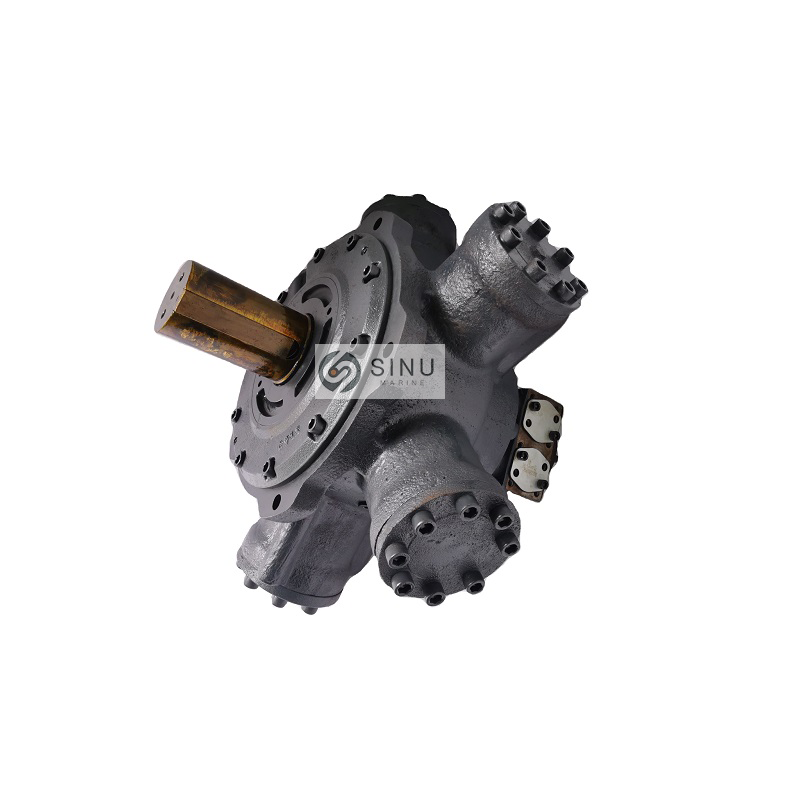

Windlass hydraulic oil motor KAYABA MRH-3150-PNYA/hatch cover motor
Windlass hydaulic oil motor KAYABA MRH-3150-PNYA/hatch cover motor
Windlass hydraulic oil motor/hatch cover motor
Model:KAYABA MRH-3150-PNYA
KAYABA marine motor series:
MRHV-3150-23-TPNSV
MRH2-3150-9-PPNCYAV
MRH2-3150-9-PPNV
MRH2-3150-1-Spvsv
MRH2-3150-1-TWH
MRH2-3150-3-TPNCYAVXSV
MRH2-3150-7-TFPNCYAV
MRH2-3150-9-PPV
MRH2-3150-9-SPV
MRH2-3150-12-TFPNCYAVX
MRH2-3150-34-TPNCYAVSV
MRH2-3150-P
MRH2-3150-T
MRH2-3150-1-SPVSV
MRH-3150-PNYA
MRH-3150-PWN-2
MRH-3150-SW
MRH-3150-T
MRHV-3150-TPNSV
MRHV-3150-T
MRHV-3150-23-TPNSV
MHHV-4400-1-P
MRH2-750-PW
MRH2-750
MRH-750
MRH2-1500
MRH-1500
MRH2-2200
MRH-2200
MRH2-4400
MRH-4400
KYB series oil motor:
Precise
Low speed,high torque output hydraulic motors
Rugged,reliable design provides extended life and excellent efficiency.
Large main bearings assure long life and allow heavy side load capacity.
Speed infinitely variable and torque constant over the entire speed range.
Many standard model offering up to 2696N.m torque.
Several dimension of shaft and porting available.
Several drain port location to ease mounting.
High pressure shaft seal options.
KYB's radial piston design achieves extremely high torque in all speed ranges.Pressurized oil exerts a force that is transmitted from the piston through the connecting rod to the camshaft.
In the valve housing,a distributor valve rotates with the camshaft and directs the oil into the cylinders.
For smooth rotation,multiple cylinders are under simultaneous pressure.
|
Model |
Displacement (cm3/rev) |
Max.Cont Pressure (MPa) |
Inter.Peak Pressure (MPa) |
Max.Cont Output Torque (N.m) |
Max.Speed(rpm) at20.6MPa at24.5MPa |
Weight (KG) |
|
|
MRH-200 |
208 |
24.5 |
27.4 |
730 |
10-600 |
10-300 |
37 |
|
MRH-500 |
498 |
1770 |
10-500 |
10-250 |
78 |
||
|
MRH-750 |
745 |
2700 |
5-400 |
5-200 |
115 |
||
|
MRH-1000 |
1005 |
3080 |
5-380 |
5-190 |
165 |
||
|
MRH-1350 |
1357 |
4820 |
3-300 |
5-150 |
165 |
||
|
MRH-1500 |
1530 |
5590 |
3-300 |
5-150 |
165 |
||
|
MRH-2200 |
2195 |
8040 |
3-220 |
5-110 |
225 |
||
|
MRH-3150 |
3140 |
11480 |
3-175 |
5-100 |
280 |
||
|
MRH-3600 |
3628 |
12747 |
3-125 |
5-75 |
372 |
||
|
MRH-4400 |
4398 |
15790 |
3-125 |
5-75 |
372 |
||
|
MRH-5200 |
5255 |
18464 |
3-120 |
5-60 |
520 |
||
|
MRH-6200 |
6186 |
22190 |
3-120 |
5-60 |
520 |
||
|
MRH-7400 |
7477 |
20.6 |
26271 |
3-100 |
|
671 |
|
|
MRH-8800 |
8800 |
26969 |
3-100 |
|
671 |
||
|
MRH-9600 |
9610 |
17.2 |
20.6 |
23637 |
3-90 |
|
671 |
|
MRH-6100 |
6100 |
20.6 |
23.0 |
18004 |
5-80 |
|
655 |
|
MRH-8600 |
8590 |
26300 |
5-40 |
|
770 |
||
