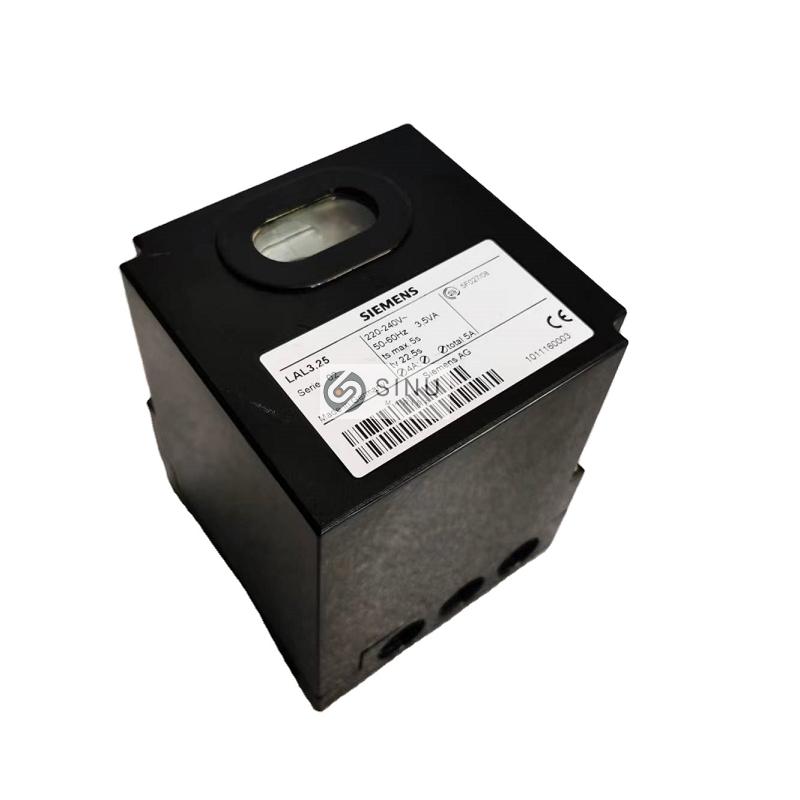

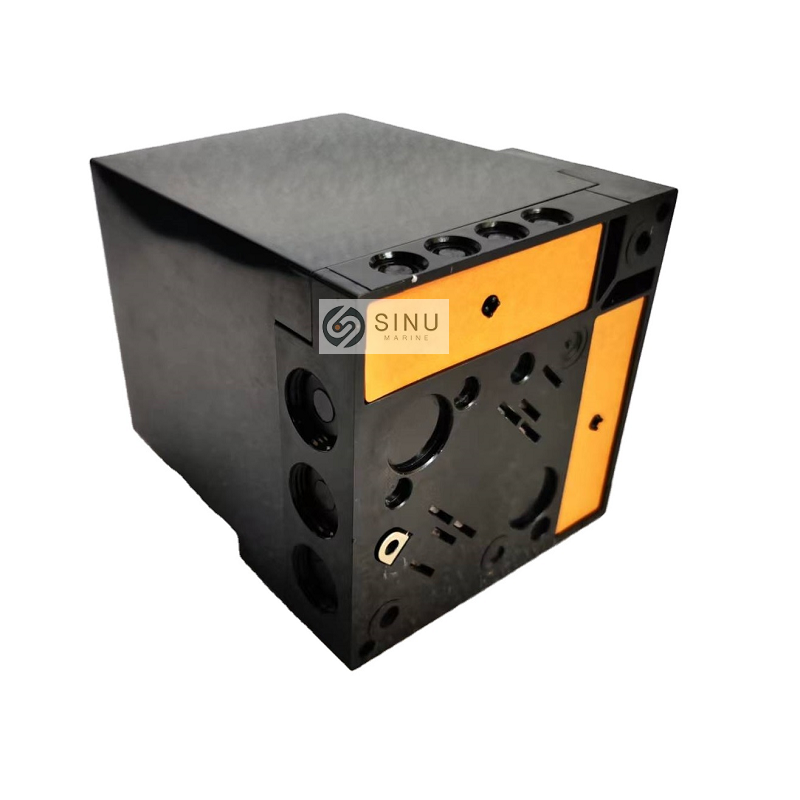

SIEMENS Oil Burner Controls LAL3.25 220-240V 50-60HZ 3.5VA
Serie 02
220-240V
50-60HZ 3.5VA
ts max 5s
tv 22.5s

SIEMENS Oil Burner Controls LFE10
SIEMENS Oil Burner Controls LAE10

1.With or without air pressure supervision for checked air damper control.
2.Flame supervision with
-Photoresistive detector QRB1 ..or
-Blue frame detector QRC1..or
-Selenium photocell detector RAR
For the control and supervision of oil atomization burners
For the burners of medium to high capacity
For intermittent operation(at least one controlled shutdown every 24 hours)
Suited for use with stationary air heaters
LAL1:Yellow and blue flame burners without air pressure supervision
LAL2:Yellow flame burners with air pressure supervision
LAL3.25:For special applications,e.g.burners of incinerator plants.
LAL4:Yellow and blue flame burners with air pressure supervision
