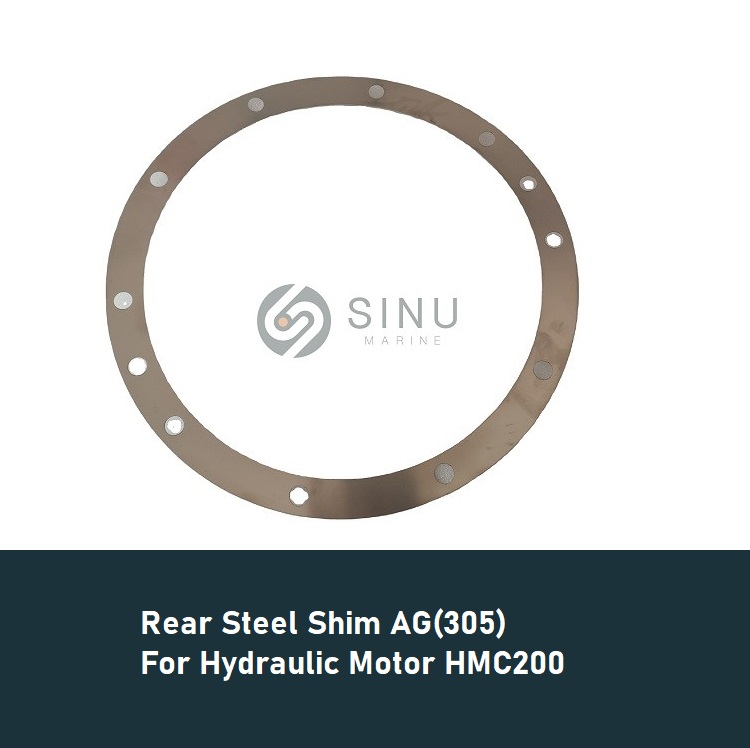

Rear Steel Shim  For Windlass Hydraulic Motor HMC200 HMC125 HMC080

Part No.AG

Drawing No.305

Windlass Hydraulic Motor Spare Parts

1    MOTORCASE
2    FRONT COVER
3    VALVE HOUSING
4    CYLINDER HEAD
5    PISTON
6    CON-ROD
7    VALVE SPOOL
8    OLDHAMS COUPLING
9    CON-ROD RETAINING RING
10    RESTRICTOR SCREW
11    PISTON RETAINING HALF RING
12    PISTON SEAL BACKING RING
13    PISTON SEAL RING
14    VALVE SEAL RING
15    CIRCUP(PISTON-INTERNAL)
16    REAR BEARING
17    FRONT BEARING
18    O-RING(VALVE END CAP)
19    O-RING(INTERNAL PORTS)
20    O-RING(CYLINDER HEAD)
21    SHAFT SEAL
22    O-RING(FRONT COVER)
23    PLASTIC SHIM SET
24    STEEL SHIM SET
25    DRAIN PLUG
26    O-RING(VALVE HOUSING SURROUNG)
27    BAVK UP RING (CYLINDER END CAP)
28    S.H.C.S(CYLINDER END CAP)
29    S.H.C.S(VALVE END CAP)
30    STEEL PLUG(VALVE HOUSING)
31    S.H.C.S(FRONT COVER)
