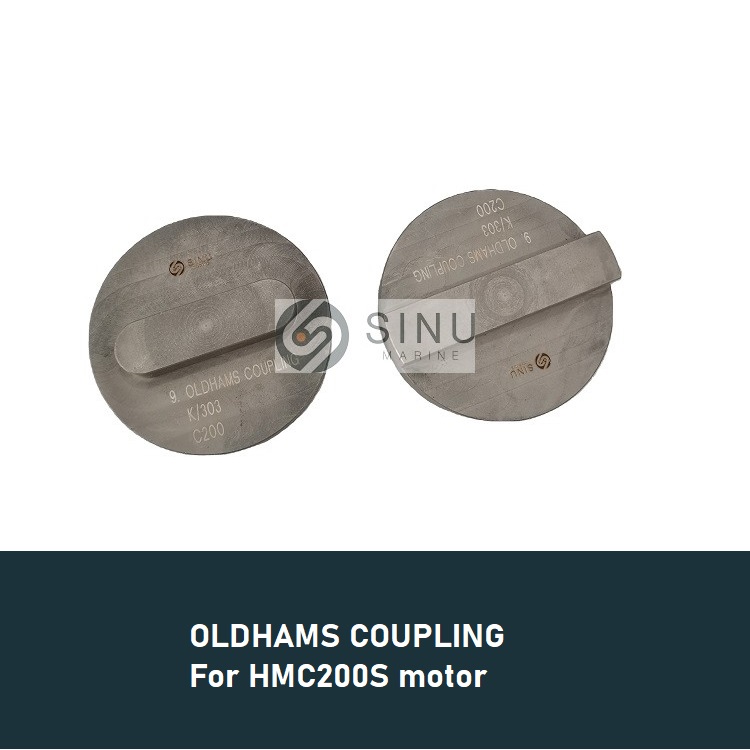

OLDHAMS COUPLING for vessel's mooring winch Hydraulic motor

Part No.K

Drawing No.303

Hydraulic motor model:HMC200/HMC125

1    OLDHAMS COUPLING    K    4
2    PISTON SEAL RING    Q    20
3    VALVE SEAL RING    R    48
4    O`RING VALVE END CAP    X    4
5    O`RING INTERNAL PORTS    Y    20
6    O`RING CYLINDER HEAD    Z    20
7    SHAFT SEAL    AA    4
8    O`RING FRONT COVER    AC    4
9    O`RING VALVE HOUSING SURROUND    AJ    4
10    S.H.C.S. VALVE END CAP    AO    16
11    O`RING C - SPACER    BI    4
12    SHAFT SEAL RING    GF    24
13    SHAFT SEAL BACKING RING    GG    12
14    O`RINGS INTERNAL PORTS C - SPACER    GK    20
15    S.H.C.S. VALVE HOUSING / C - SPACER /    GL    20
