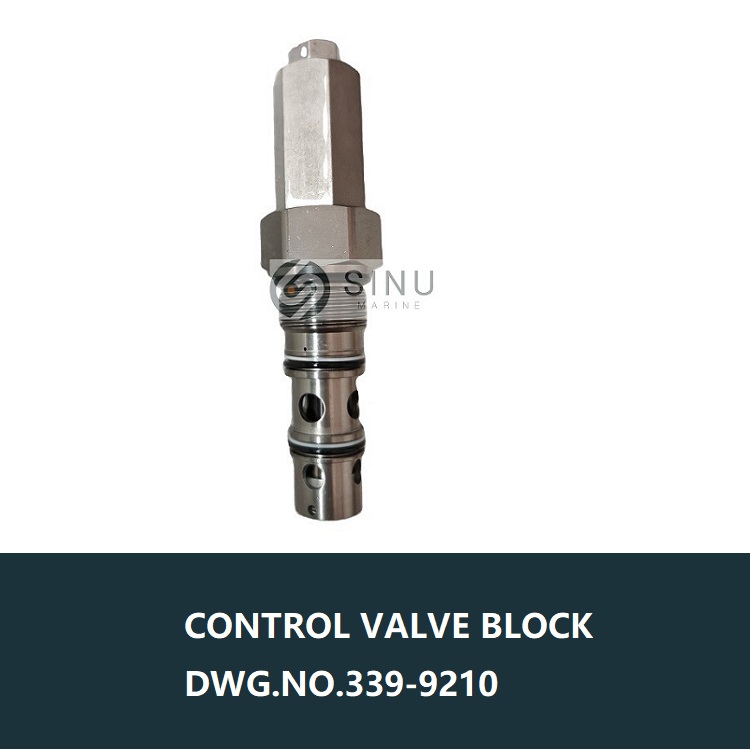

FLOW CONTROL VALVE

DWG.NO.339-9210

14    QUICK COUPLING
13    QUICK COUPLING
12    TEST HOSE
11    PRESSURE GAUGE
10    SHUT OFF VALVE
9    BALL VALVE
8    BALL VALVE
7    TEST POINT
6    COUNTBALANCE VALVE
5    THROTTLE VALVE
4    CHECK VALVE
3    REDUCING VALVE
2    DIRECTIONAL VALVE
1    FLOW CONTROL VALVE
