CONTROL VALVE BLOCK/STTS HATCH COVER VALVES GROUP

Weatherdeck Hatch Covers ship spare parts

dry cargo handling hydraulic CONTROL VALVE BLOCK

DRWING NO.636-9200

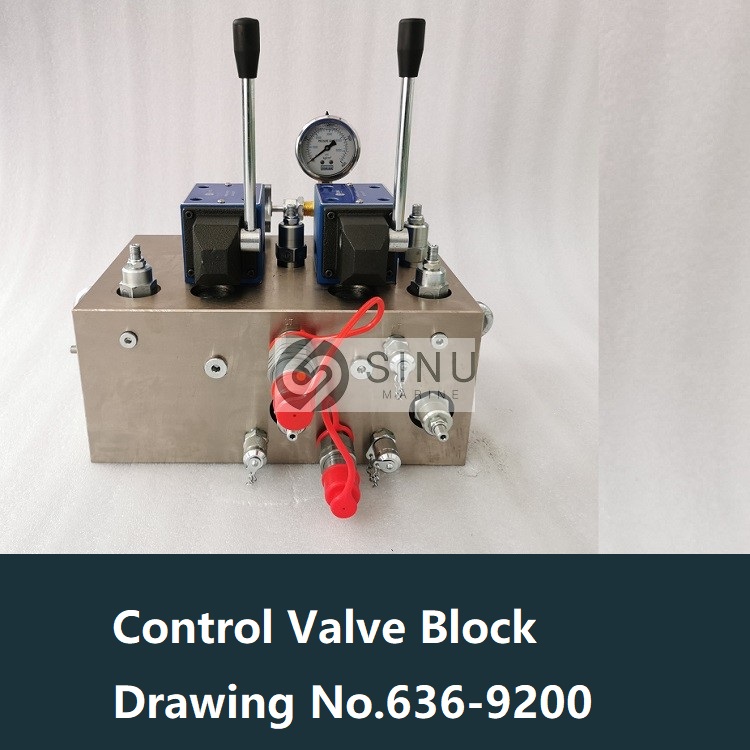

STTS CONTROL VALVE BLOCK 636-9200
1,SWITCH FOR PRESSURE GAUGE
2,PRESSURE GAUGE
3,BALL VALVE
4,VALVE BLOCK
5,QUICK RELEASE COUPLING
6,TEST NIPPLE
7,CHECK VALVE
8,COUNTBALANCE VALVE
9,THROTTLE VALVE
10,SHUT OFF VALVE
11,PRESSURE REDUCING VALVE
12,DRECTIONAL VALVE
13,THROTTLE VALVE

VALVE BLOCK FOR HATCH COVER:

STTS Control Valve Block Drawing No.259-9200
STTS Control Valve Block Drawing No.363-9200
STTS Control Valve Block Drawing No.406-9200
STTS Control Valve Block Drawing No.430-9200
STTS Control Valve Block Drawing No.446-9200
STTS Control Valve Block Drawing No.512-9200
STTS Control Valve Block Drawing No.531-9200
STTS Control Valve Block Drawing No.579-9200
STTS Control Valve Block Drawing No.594-9200
STTS Control Valve Block Drawing No.660-9200
STTS Control Valve Block Drawing No.636-9200
STTS Control Valve Block Drawing No.780-9300
STTS Control Valve Block Drawing No.817-9200
STTS Control Valve Block Drawing No.717-9200
STTS Control Valve Block Drawing No.827-9200
STTS Control Valve Block Drawing No.852-9200
STTS Control Valve Block Drawing No.859-9200
STTS Control Valve Block Drawing No.944-9200
STTS Control Valve Block Drawing No.1097-9200
STTS Control Valve Block Drawing No.1175-9000
STTS Control Valve Block Drawing No.1296-9404
STTS Divider Valve Block Drawing No.383-9210
STTS Divider Valve Block Drawing No.507-9210
STTS Divider Valve Block Drawing No.919-9210
