SINU MARINE KAYABA SERIES MRH HYDRAULIC MOTOR FOR DECK CRANE
KYB series oil motor:
Precise
Low speed,high torque output hydraulic motors
Rugged,reliable design provides extended life and excellent efficiency.
Large main bearings assure long life and allow heavy side load capacity.
Speed infinitely variable and torque constant over the entire speed range.
Many standard model offering up to 2696N.m torque.
Several dimension of shaft and porting available.
Several drain port location to ease mounting.
High pressure shaft seal options.
KYB's radial piston design achieves extremely high torque in all speed ranges.Pressurized oil exerts a force that is transmitted from the piston through the connecting rod to the camshaft.
In the valve housing,a distributor valve rotates with the camshaft and directs the oil into the cylinders.
For smooth rotation,multiple cylinders are under simultaneous pressure.
Model |
Displacement(cm3/rev) |
Max.Cont Pressure(MPa) |
Inter.Peak Pressure(MPa) |
Max.Cont Output Torque(N.m) |
Max.Speed(rpm)at20.6MPa at24.5MPa |
Weight(KG) |
|
MRH-200 |
208 |
24.5 |
27.4 |
730 |
10-600 |
10-300 |
37 |
MRH-500 |
498 |
1770 |
10-500 |
10-250 |
78 |
||
MRH-750 |
745 |
2700 |
5-400 |
5-200 |
115 |
||
MRH-1000 |
1005 |
3080 |
5-380 |
5-190 |
165 |
||
MRH-1350 |
1357 |
4820 |
3-300 |
5-150 |
165 |
||
MRH-1500 |
1530 |
5590 |
3-300 |
5-150 |
165 |
||
MRH-2200 |
2195 |
8040 |
3-220 |
5-110 |
225 |
||
MRH-3150 |
3140 |
11480 |
3-175 |
5-100 |
280 |
||
MRH-3600 |
3628 |
12747 |
3-125 |
5-75 |
372 |
||
MRH-4400 |
4398 |
15790 |
3-125 |
5-75 |
372 |
||
MRH-5200 |
5255 |
18464 |
3-120 |
5-60 |
520 |
||
MRH-6200 |
6186 |
22190 |
3-120 |
5-60 |
520 |
||
MRH-7400 |
7477 |
20.6 |
26271 |
3-100 |
|
671 |
|
MRH-8800 |
8800 |
26969 |
3-100 |
|
671 |
||
MRH-9600 |
9610 |
17.2 |
20.6 |
23637 |
3-90 |
|
671 |
MRH-6100 |
6100 |
20.6 |
23.0 |
18004 |
5-80 |
|
655 |
MRH-8600 |
8590 |
26300 |
5-40 |
|
770 |
||
The multi displacement motor shown above,uses a shifting piston inside the cam to change displacement.
KAYABA hydraulic motor series for marine/vessel/dry cargo deck crane/hatch cover/:
MRHV-3150-23-TPNSV

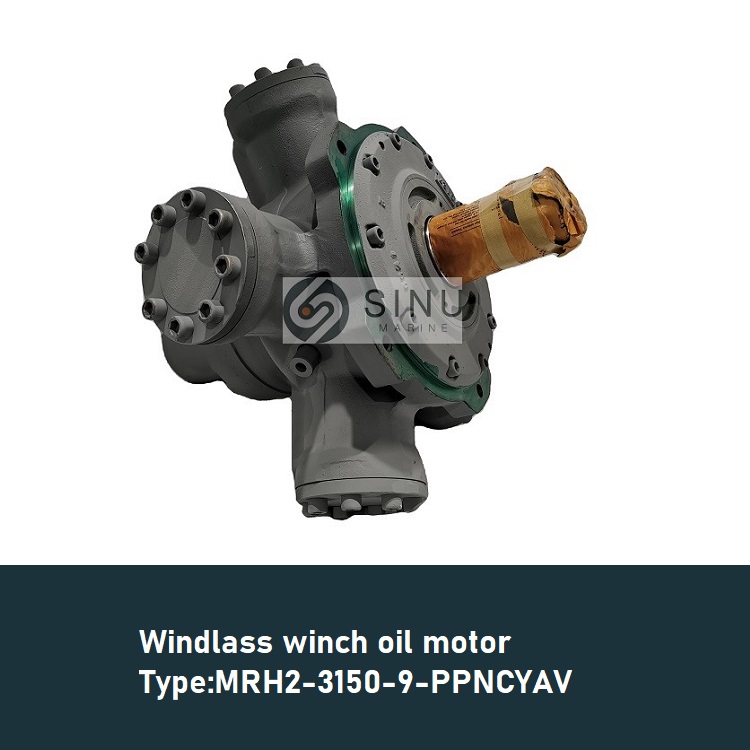

MRH2-3150-9-PPNCYAV
MRH2-3150-9-PPNV

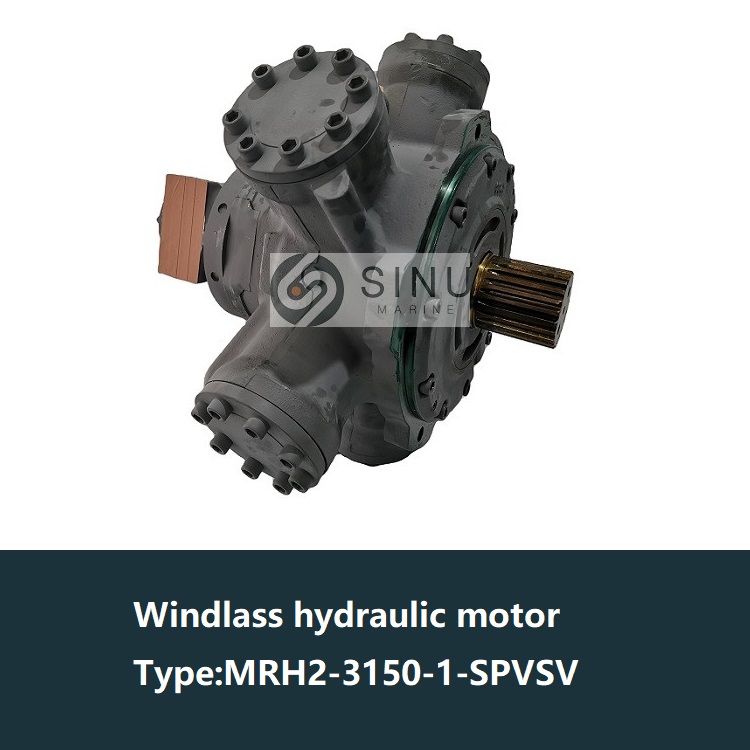

MRH2-3150-1-Spvsv
MRH2-3150-1-TWH
MRH2-3150-3-TPNCYAVXSV
MRH2-3150-7-TFPNCYAV
MRH2-3150-9-PPV
MRH2-3150-9-SPV
MRH2-3150-12-TFPNCYAVX
MRH2-3150-34-TPNCYAVSV
MRH2-3150-P
MRH2-3150-T
MRH2-3150-1-SPVSV
MRH-3150-PWN-2
MRH-3150-SW
MRH-3150-T
MRHV-3150-TPNSV
MRHV-3150-T
MRHV-3150-23-TPNSV
MHHV-4400-1-P
MRH2-750-PW
MRH2-750
MRH-750
MRH2-1500
MRH-1500
MRH2-2200
MRH-2200
MRH2-4400
MRH-4400
